The problem with cracks
Cellular noise draws cracks easily. Take the distance to the nearest border between Voronoi cells, and anything close to zero is a crack. The trouble is that it cracks everywhere, evenly, like a dry riverbed or a broken phone screen. Stone that’s holding something molten back doesn’t look like that. It has a few deep veins, some branches off them, and long stretches of unbroken surface.
Few veins, not many
The monolith’s fissures start from the exact border distance of a 3D Voronoi field, then lose most of it:
- Warp first. The coordinates are stretched vertically and pushed around by low-frequency noise, so the cells become long and leaning. Veins run mostly up and down the slab instead of forming tidy polygons.
- Mask by region. A very slow noise decides where veins may exist at all. Most of the surface fails that test, so only a handful of veins survive.
- Break along the vein. A second noise interrupts each vein for a stretch and changes its brightness, which is what makes it read as a crack in rock rather than a drawn line.
- Branch only near the veins. Smaller cracks come from a finer cell field, but they’re only allowed close to a main vein, so they grow off it.
Making it glow
Each vein has a thin core, sharpened with fwidth so it stays crisp at any distance, and a soft halo that falls off exponentially. The pulse is three sine waves at frequencies that never line up, with a phase that changes slowly across the stone. Neighbouring veins beat out of step, and there’s never an obvious rhythm.
Heat (from the chapter you’re in, or your pointer) widens the veins, extends their fading ends and brightens them.
Try it

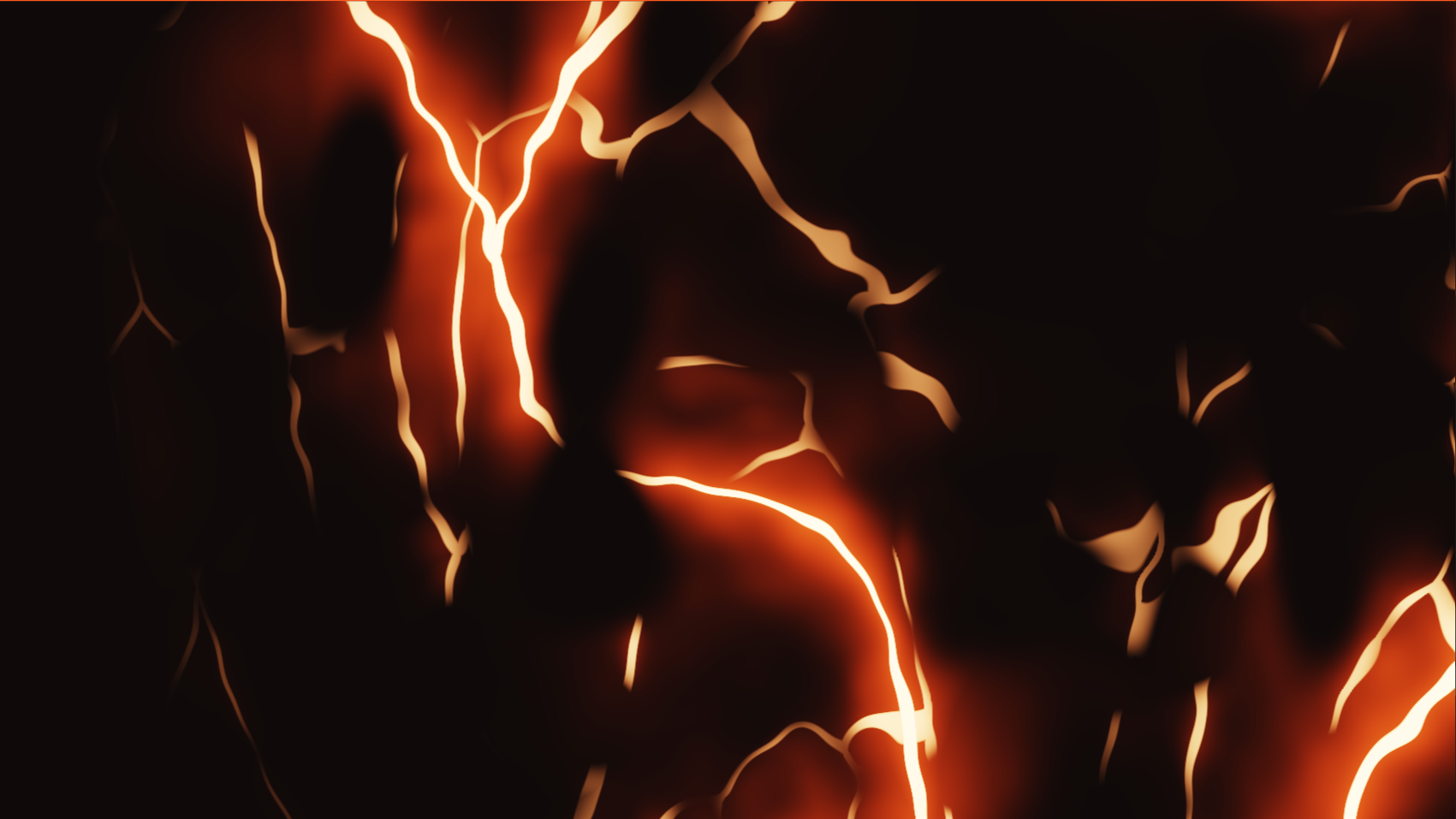

The demo above is the fissure function alone, on a single full-screen triangle in raw WebGL2: no Three.js, no lighting, no post-processing. Turn up the heat and the veins open. Change the pulse speed and the light breathes faster or slower.
On the live site
The High tier runs this per pixel, every frame. Lighter devices read the same veins from a texture baked at build time from the very same shader code, so every visitor sees the same stone.
